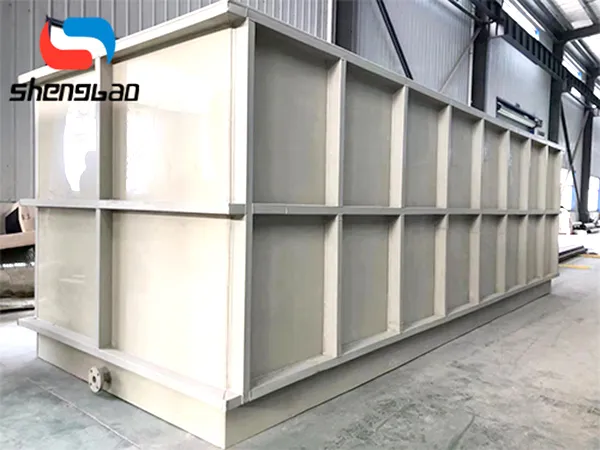

In the landscape of modern industrial processes, particularly in the chemical, metallurgical, and emerging green hydrogen sectors, the equipment used for electrochemical reactions forms the very backbone of production. Among the various technologies and materials employed, the PPH electrolytic tank stands out as a critical innovation, marrying advanced material science with practical engineering to create a vessel that is both highly durable and economically efficient. This article provides a detailed exploration of PPH electrolytic tanks, delving into their material properties, manufacturing processes, key advantages, applications, and considerations for use.

1. Unveiling the Material: What is PPH?

To understand the PPH electrolytic tank, one must first understand the material from which it is constructed. PPH is an acronym for Polypropylene Homopolymer. It is a thermoplastic polymer known for its exceptional chemical resistance, high mechanical strength, and excellent thermal stability within a specific range.

Unlike copolymers which incorporate other monomers like ethylene to alter properties, the homopolymer structure of PPH gives it a more regular molecular arrangement. This results in:
  Higher Strength and Stiffness: It has a higher tensile strength and modulus of elasticity compared to copolymers, making it structurally robust for large tanks.
  Superior Chemical Resistance: It exhibits outstanding resistance to a wide spectrum of acids, alkalis, and salts, making it ideal for harsh electrolytic environments where metal corrosion is a paramount concern.
  Good Thermal Performance: While thermoplastics have limits, PPH can typically operate continuously at temperatures up to 90-100°C (194-212°F), which covers many industrial electrolysis processes.
  High Purity: It does not leach contaminants, ensuring the purity of the electrolyte and the final product, which is crucial in industries like electronics or food processing.

2. The Manufacturing Process: How PPH Tanks Are Built

PPH electrolytic tanks are not fabricated from sheets or welded in the traditional metallic sense. Instead, they are manufactured using a specialized technique called extrusion welding or coil winding. This process is key to their monolithic strength.

The procedure generally involves:
1.  Material Preparation: PPH raw material in granule form is fed into an extruder.
2.  Extrusion: The granules are heated to a molten state and extruded through a die, forming a continuous ribbon or coil of molten PPH.
3.  Coil Winding: This molten ribbon is systematically wound onto a rotating mandrel (a mold in the shape of the tank's interior). The mandrel defines the tank's diameter and height.
4.  Fusion Welding: As the new molten layer is applied, it fuses seamlessly with the previous layer beneath it. This fusion creates a truly monolithic structure with no seams or weak points, as the entire wall becomes a single, homogeneous piece of plastic.
5.  Cooling and Finishing: Once the desired wall thickness is achieved, the tank is cooled, removed from the mandrel, and fitted with necessary accessories like nozzles, manways, and support rings.

This manufacturing method allows for the creation of tanks with remarkably consistent wall thickness and superior structural integrity, free from the stress points and potential defects common in welded polypropylene tanks.

3. Key Advantages of PPH Electrolytic Tanks

The combination of PPH material and its unique manufacturing process bestows several significant advantages over traditional materials like steel (even with linings), PVC, or other plastics.

  Unmatched Corrosion Resistance: This is the primary advantage. PPH is inherently inert to the corrosive attack of most electrolytes. Unlike stainless steel, which can succumb to pitting and chloride-induced stress corrosion cracking, a PPH tank will not rust or degrade, ensuring a long service life and eliminating product contamination from corrosion byproducts.
  Seamless and Leak-Proof Construction: The monolithic winding process means there are no longitudinal or circumferential seams. This drastically reduces the risk of leaks, a critical safety and environmental concern when handling often hazardous electrolytes.
  Lightweight yet Robust: PPH tanks are significantly lighter than their steel or concrete counterparts. This simplifies transportation, handling, and installation, reducing overall project costs. Despite being lightweight, the coiled structure provides excellent impact resistance and pressure ratings.
  Low Maintenance and Long Life: The non-corrosive nature of PPH eliminates the need for periodic lining repairs, cathodic protection, or replacement due to rust. With proper design and operation within its thermal limits, a PPH tank can last for decades with minimal upkeep.
  Cost-Effectiveness: Over the total lifecycle of the equipment, PPH tanks often prove more economical than alternatives. The initial material and installation cost is lower, and the savings from zero corrosion-related maintenance and extended lifespan contribute to a lower total cost of ownership.

4. Primary Applications in Industry

PPH electrolytic tanks are versatile and find application in numerous sectors where electrolysis is a key process step:

  Chlor-Alkali Industry: For the production of chlorine, sodium hydroxide (caustic soda), and hydrogen. They are used in secondary containment, brine treatment, and auxiliary process tanks.
  Electrowinning and Electrorefining: In non-ferrous metallurgy, for the extraction and purification of metals like copper, zinc, nickel, and cobalt from their leach solutions. The tanks hold the electrolyte from which pure metal is deposited onto cathodes.
  Water Electrolysis for Green Hydrogen: As the world moves towards green energy, proton exchange membrane (PEM) and alkaline water electrolyzers require robust and corrosion-resistant tanks for water circulation, electrolyte management (in alkaline systems), and gas separation.
  Wastewater Treatment: In electrochemical oxidation processes used to treat industrial wastewater, breaking down complex organic pollutants.
  Surface Treatment and Electroplating: For holding various plating baths and anodizing solutions.

5. Important Considerations and Limitations

While exceptional, PPH electrolytic tanks are not a universal solution. Certain limitations must be respected:

  Temperature Constraints: PPH is a thermoplastic. Exceeding its heat deflection temperature (HDT) will cause it to soften and deform. Processes operating consistently above 100°C require alternative materials like PVDF (Polyvinylidene Fluoride) or lined steel.
  UV Degradation: Prolonged exposure to direct ultraviolet sunlight can degrade PPH. Outdoor installations require either the addition of UV stabilizers to the polymer formula or an external protective coating/paint.
  Mechanical Abuse: While impact-resistant, they can be scratched or gouged by sharp objects. Care must be taken during installation and maintenance.
  Design Pressure: They are generally suited for atmospheric or low-pressure applications. High-pressure electrolysis requires vessels designed with different materials and codes.

Conclusion

The PPH electrolytic tank represents a brilliant synergy of material science and manufacturing ingenuity. It provides a robust, cost-effective, and supremely corrosion-resistant solution for one of industry's most challenging environments. Its seamless construction ensures integrity and safety, while its lightweight nature simplifies logistics. For engineers and plant managers designing processes involving electrolysis, the PPH tank is not just an option; it is often the optimal choice for ensuring operational reliability, product purity, and long-term economic viability. As industries like green hydrogen continue to expand, the role of reliable and efficient equipment like the PPH electrolytic tank will only become more crucial in building a sustainable industrial future.
